Tube Installation Tools
Torque Analyzer • Belling Hammer • Tube end Facing Tool
Click on a photo thumbnail to view a large version. |
|||

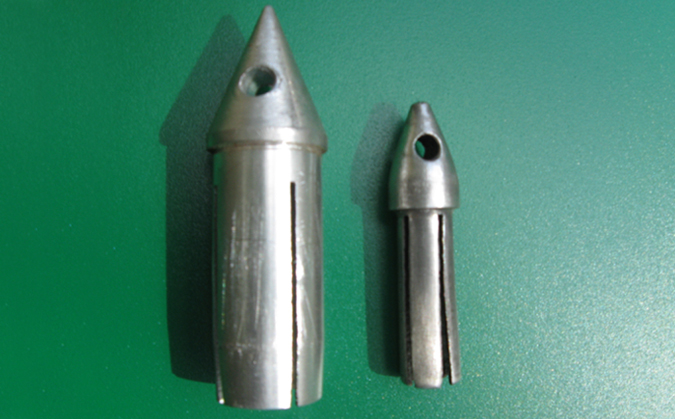

Tube GuidesThis all-aluminum Tube Guide will protect the tube and guide the new tube through the tube sheet and support plate holes. |

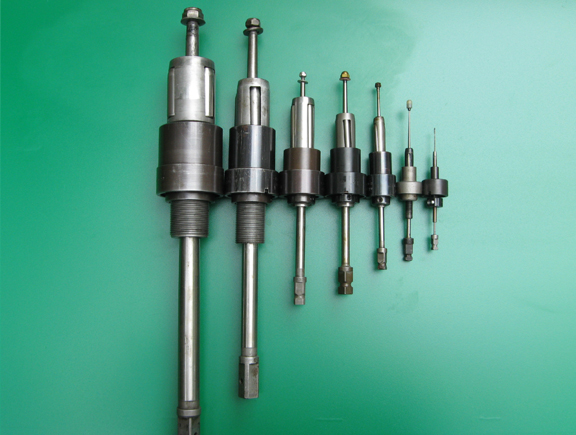

Tube ExpandersThe Tube Expander is used to expand the tube end, thus creating the tube-to-tube sheet joint. We stock Expanders for 1/4" diameter to 2 1/2" diameter tubes. |
||

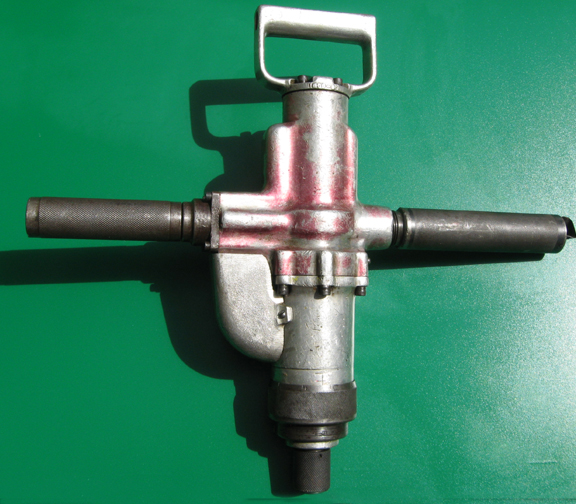

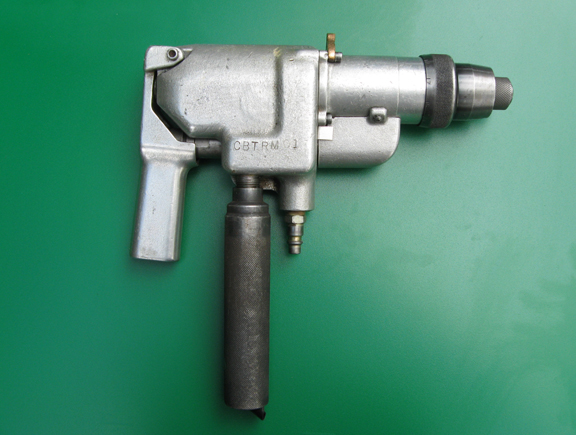

Torque-controlled Tube Rolling MotorsWe have Rolling Motors for tubes from 1/4" to 2- 1/2" O.D. The adjustable torque control can be set to achieve the desired tube wall reduction. |
Back To Top of Page | ||

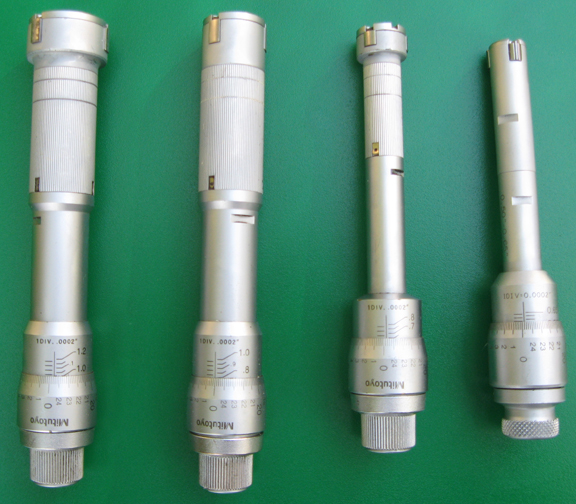

Three-Blade MicrometerThese bore micrometers are used to measure the tube sheet holes and final tube diameter after rolling and during set-up, to establish the required tube wall reduction. |

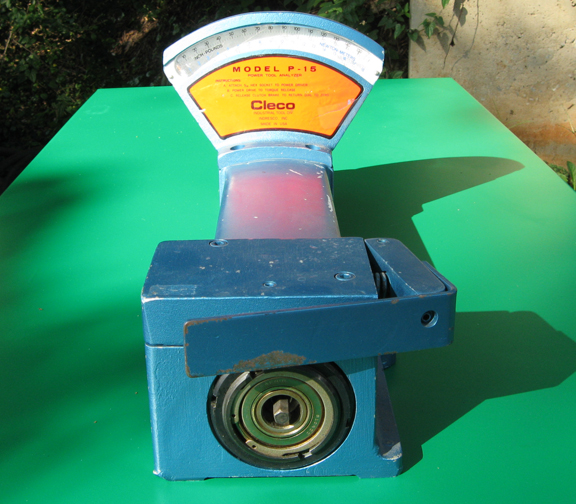

Torque AnalyzerUsed to verify the accuracy and performance of the torque-controlled Tube Rolling Motor. |
||

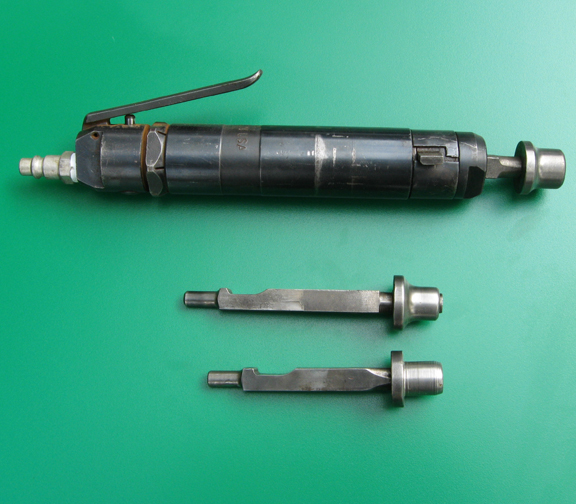

Belling Hammer w/Belling ToolThis tool is used to form a bell tight to the tube sheet radius, thus providing a smooth flow at the inlet end of the tube after tube rolling. |

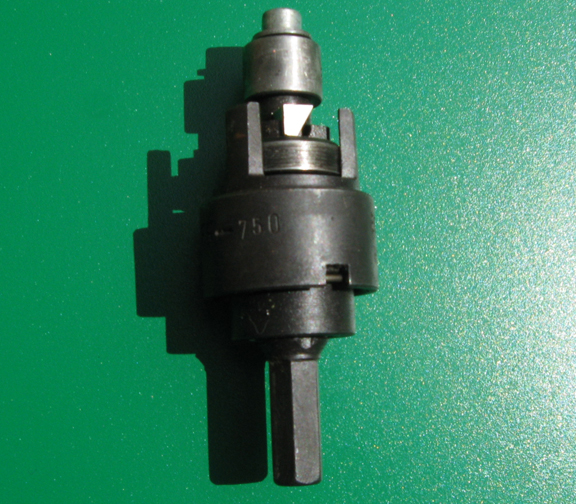

Tube End Facing ToolThis tool is used to face the outlet tube end flush with the outlet tube sheet. |
||
