Internal Tube Cutters

Click on a photo thumbnail to view a large version.

Internal Tube Cutter (Standard Model)

This lever-operated Internal Tube Cutter was designed and built in 1978.  We build and rent two different models.

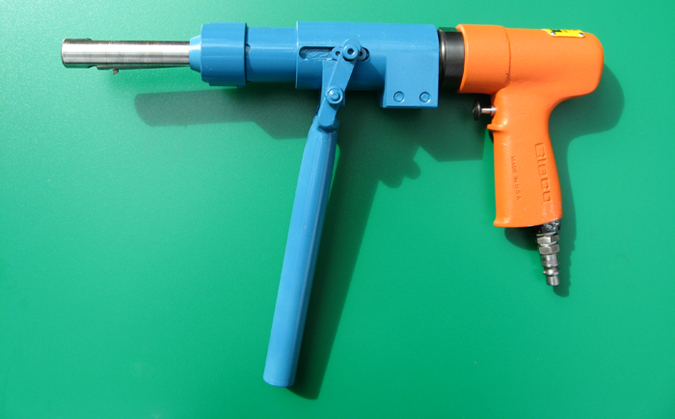

Standard Internal Tube Cutter

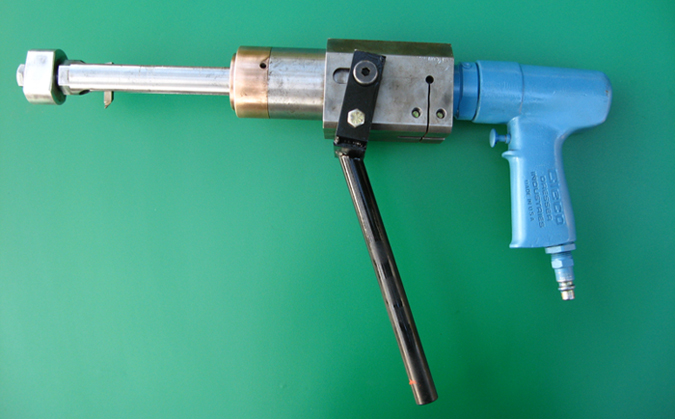

Large Internal Tube Cutter


Standard Model

Large Tube Model

Weight 10 lbs. 18 lbs.
Tube Size ¾” to 1-1/4”, 18-22 BWG    1-3/8” to 1-1/2”, 18-22 BWG
Rpm 400 - 800 150 - 400
Air Motor 1-HP 1-HP
Blade Size 3/16” x 1/8” 3/8” x 3/8”
Tube Material Brass and Stainless Steel Brass and Stainless Steel
Blade Material 48% Cobalt 48% Cobalt
Blade Design Two cutting edges/blade Two cutting edges/blade
